TRAUMACLAVICLE

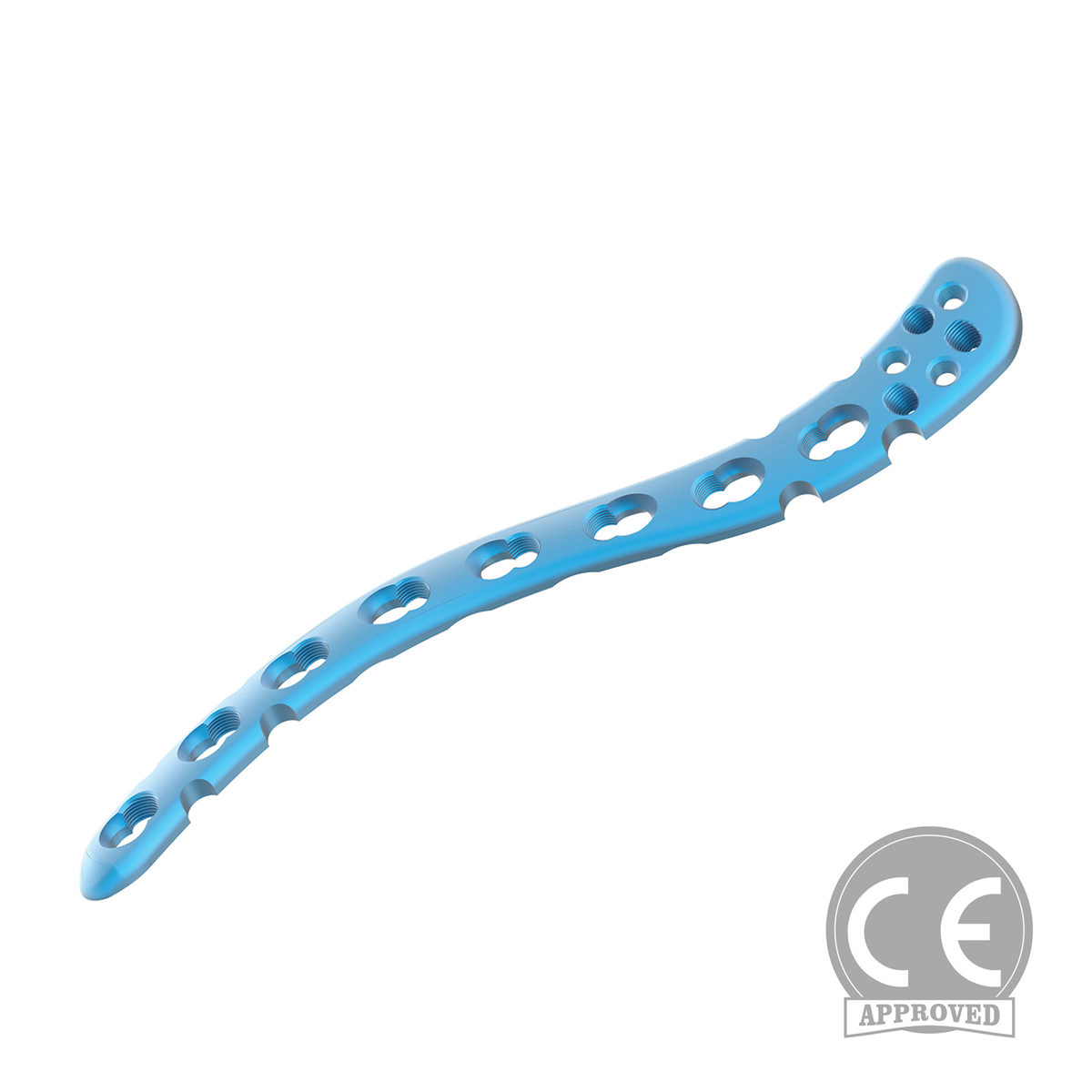

2.7/3.5mm Wise-Lock Superior Anterior Clavicle Plate with Lateral Extension
Categories: 3.5mm Wise-Lock Small Fragment System, Clavicle, Plates
Specifications:
Plates (Right & Left) available in both – Titanium & Stainless steel.
Plate features locking compression holes and round locking holes that accepts 2.7mm/ 3.5mm cortical and Wise Lock Screws.
Plate available with 3,4,5,6,7 & 8 holes
Indications for use:
Fractures of the clavicle shaft
Fractures of the lateral clavicle
Malunions of the clavicle
Non-unions of the clavicle

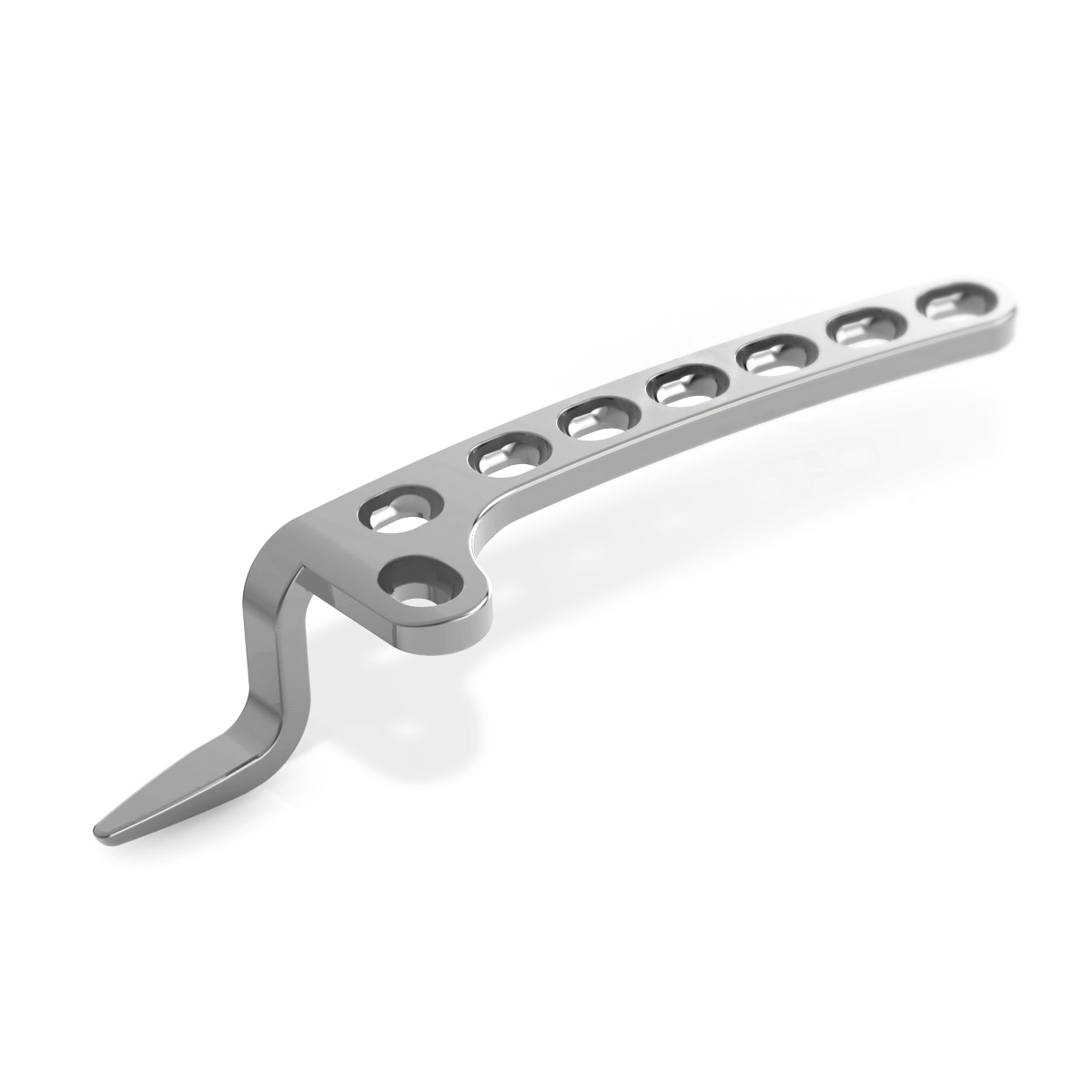

3.5mm Clavicle Hook Plate
Categories: Clavicle, Plates, Small Fragment
Specifications:
Dynamic compression screw holes accept 3.5mm Cortical Screws and 4.0mm cancellous bone screws.
Plate is compatible with the 3.5mm DCP drill guide
Anteriolateral screw hole provides additional option for screw fixation in the lateral clavicle.
Hooks provide additional support to both lateral clavicle fractures and acromioclavicular joint dislocations.
Plates available with 4, 5, 6 or 7 holes.
Offset hook design to avoid insertion of hook into acromioclavicular ligament.
Indications for use:
Lateral clavicle fracture
Dislocations of the acromioclavicular joint

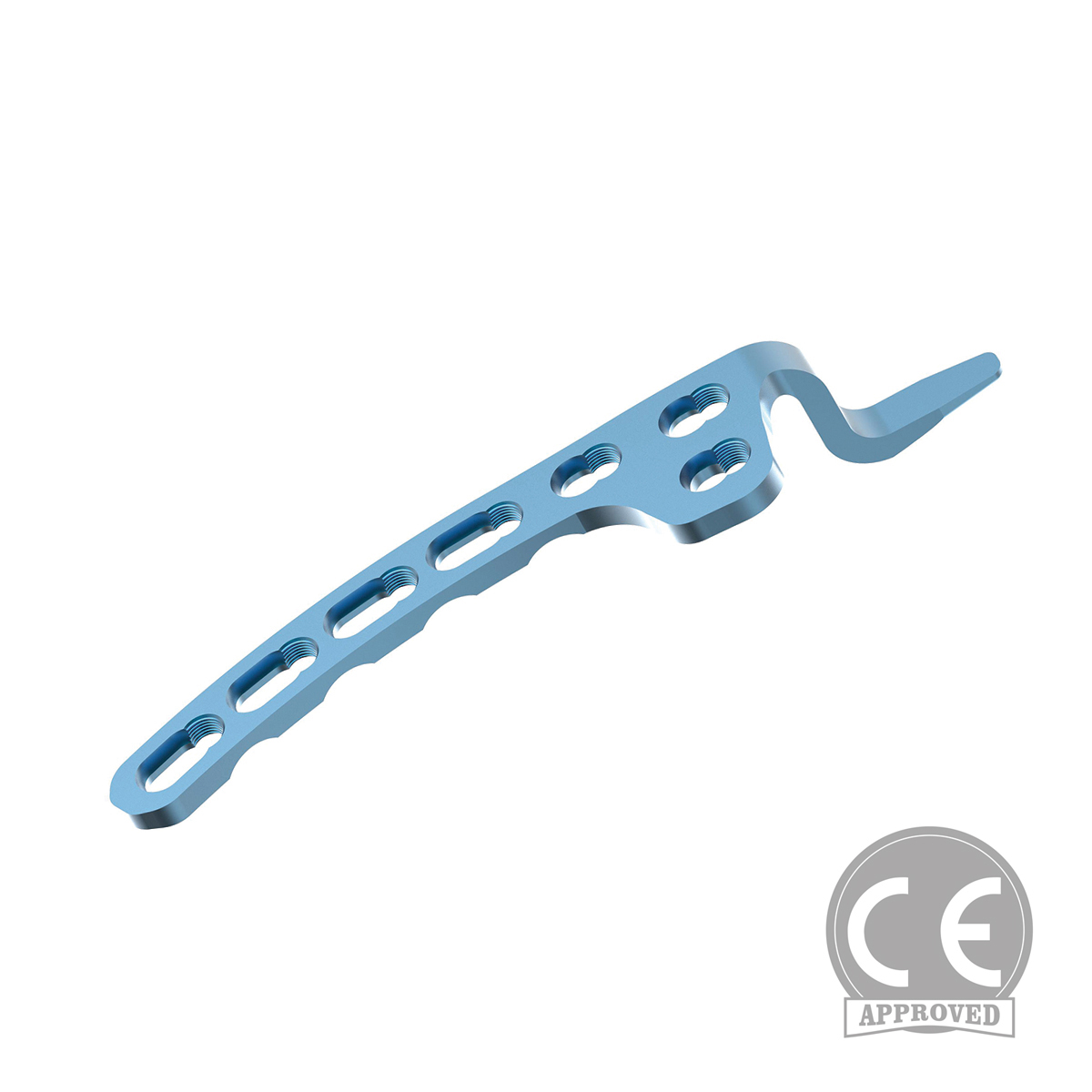

3.5mm Wise-Lock Clavicle Hook Plate
Categories: 3.5mm Wise-Lock Small Fragment System, Clavicle, Plates
Specifications:
Available in both Titanium & Stainless steel.
Plate features locking compression holes and round locking holes that accepts 3.5mm cortical and Wise-lock screws.
Plates are available with 3 different hook depths, i.e, 12mm, 15mm & 18mm.
All the three depth plates bears 4,5,6 & 7 holes.
Indications for use:
Lateral clavicle fractures: Neer type II or Jäger and Breitner type II.
Acromioclavicular joint dislocation type: Tossy III or Rockwood III to V.

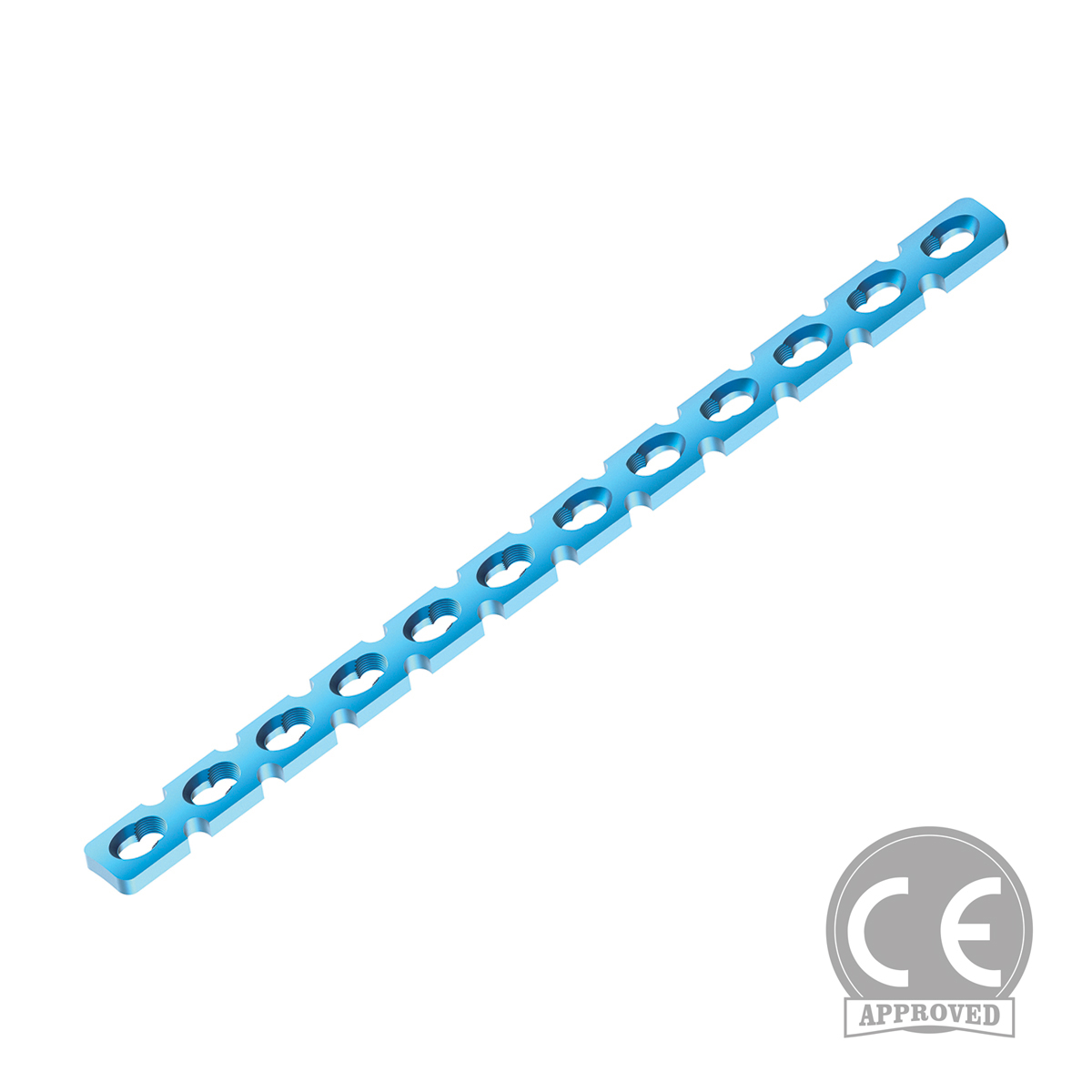

3.5mm Wise-Lock Reconstruction Plate
Categories: 3.5mm Wise-Lock Small Fragment System, Clavicle, Fibula, Pelvic, Plates
Specifications:
Available in both Titanium & Stainless steel.
Plate features locking compression holes and round locking holes that accepts 3.5mm cortical and locking screws.
Plates available with 5,6,7,8,9,10,11,12,14,16,18,20, & 22 holes.
Indications for use:
Reconstruction Plates 3.5- Straight is used to fix the Pelvic, clavicle and calcaneal fractures.
